CT-10W数字显示表
Digital Indicator
Feature
The product shows signal of sense(load, torque pressure etc) and micro voltage output sense, which used strain gauge, into digital display and analogue output as indicator, and intermediate or high sampling and comparison output are available.
Best for measuring micro voltage output sense (load, torque)
Rapid sampling speed (100 times/sec)
High resolving power (16bit A/D)
High accuracy (over 0.02% F.S) and stability
One touch Auto zero (Display & Analog out zero)
Calibration of actual load and sensor output value
System error automatic return
Specification
Application sensor |
Strain gauge type sensor |
Sensor authorized voltage |
DC 5V |
Zero adjustment range |
100% F.S(Auto zero) |
Signal input range |
0.5~3mV/V |
Display range |
-19999~+99999 |
Character height |
7 segment LED 14mm |
A/D converter |
16bit 100 times/sec |
D/A converter |
12bit |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC 0~10V(4~20mA : Option) |
Contact capacity |
AC 250V 5A |
Relay life span |
Over 5 million times |
Usage temperature range |
-10°C~60°C |
Humidity |
Less than 80% RH |
Power |
AC 220V 50/60Hz |
Weight |
About 800g |
Function
Peak & Sample hold
Upper and lower limit comparison output
NG, OK decision function
4 Relay out
Analog out(DAC)
Option
OP-01: BCD paralle out
OP-02: RS232C serial interface
OP-03: RS485 multi drop interface
OP-05: 8 step open collector output

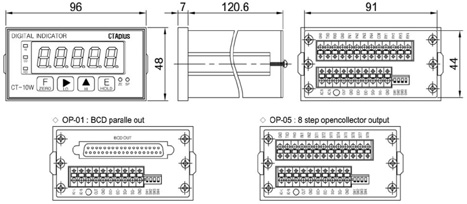

Dimension
