HDI-10便携式显示表
Portable Indicator
Feature
The product shows signal of potentiometer and micro voltage output sense, which used strain gauge, into digital display and analogue output as portable indicator.
Measuring DATA storage (Max 500)
Peak hold
Auto zero
HI, LO comparison lamp display
Specification
Usage voltage |
DC 9V battery |
Current consumption |
15mA |
Input signal |
Load Cell : 1.0~3.0mV/V |
Load display |
4 1/2 digit LCD |
Display range |
+19999 |
Display speed |
About 10 times/sec |
Decima point |
Random setting available |
A/D sampling speed |
100 times/sec. |
A/D resolving power |
16bit |
Zero adjustment range |
100% F.S. (Auto zero) |
Data storage |
Measuring data storage (Max 500) |
Serial data out |
RS232C Serial Interface |

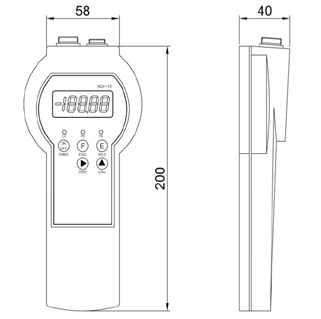

Dimension
