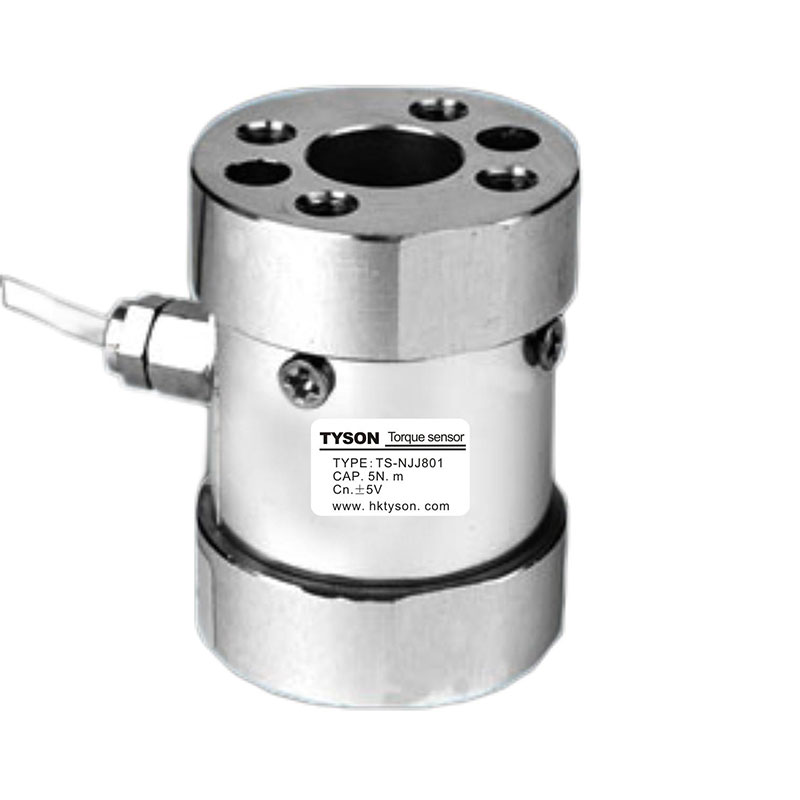

TS-NJJ801 Static torque sensor

Product Introduction：

Features & Applications

Features and uses

Static torque sensor, stainless steel or aluminum alloy, with metal foil strain gauge technology, compact construction.

Suitable for static, non-continuous rotation torque force measurement.

Small size, flange structure easy to install

High precision, good stability, static torque test to prepare, torque wrench and other torque test equipment.

Contact：13066986209

参数

Output sensitivity	2.0 ± 10% mV / V
Zero output	± 2 % F.S.
nonlinearity	0.5% F.S.
hysteresis	0.25 % F.S.
repeatability	0.1 % F.S.
Creep (30 minutes)	0.5 % F.S.
Temperature sensitivity drift	0.05 % F.S. / 10ºC
Zero temperature drift	0.05 % F.S. / 10ºC
Input resistance	410 ± 10 Ω
Output resistance	350 ± 5 Ω
Insulation resistance	≥5000MΩ/100VDC
Excitation voltage	10 V
Maximum excitation voltage	15 V
Temperature compensation range	- 10 ~ 60 ºC
Operating temperature range	- 20 ~ 80 ºC
Safety overload	120 % F.S.
Ultimate overload	150 % F.S.
Cable dimension	Ø 3×3000mm
Class of protection	IP65
